PASSENGER POWER SLIDING DOOR LOCK RELEASE MOTOR FOR TOYOTA ALPHARD ANH10 MNH10

PASSENGER POWER SLIDING DOOR LOCK RELEASE MOTOR FOR TOYOTA ALPHARD ANH10 MNH10

£16.95
£16.95
Sale Sold out
Taxes included.
******ONLY FOR CONFIDENT DIYers******

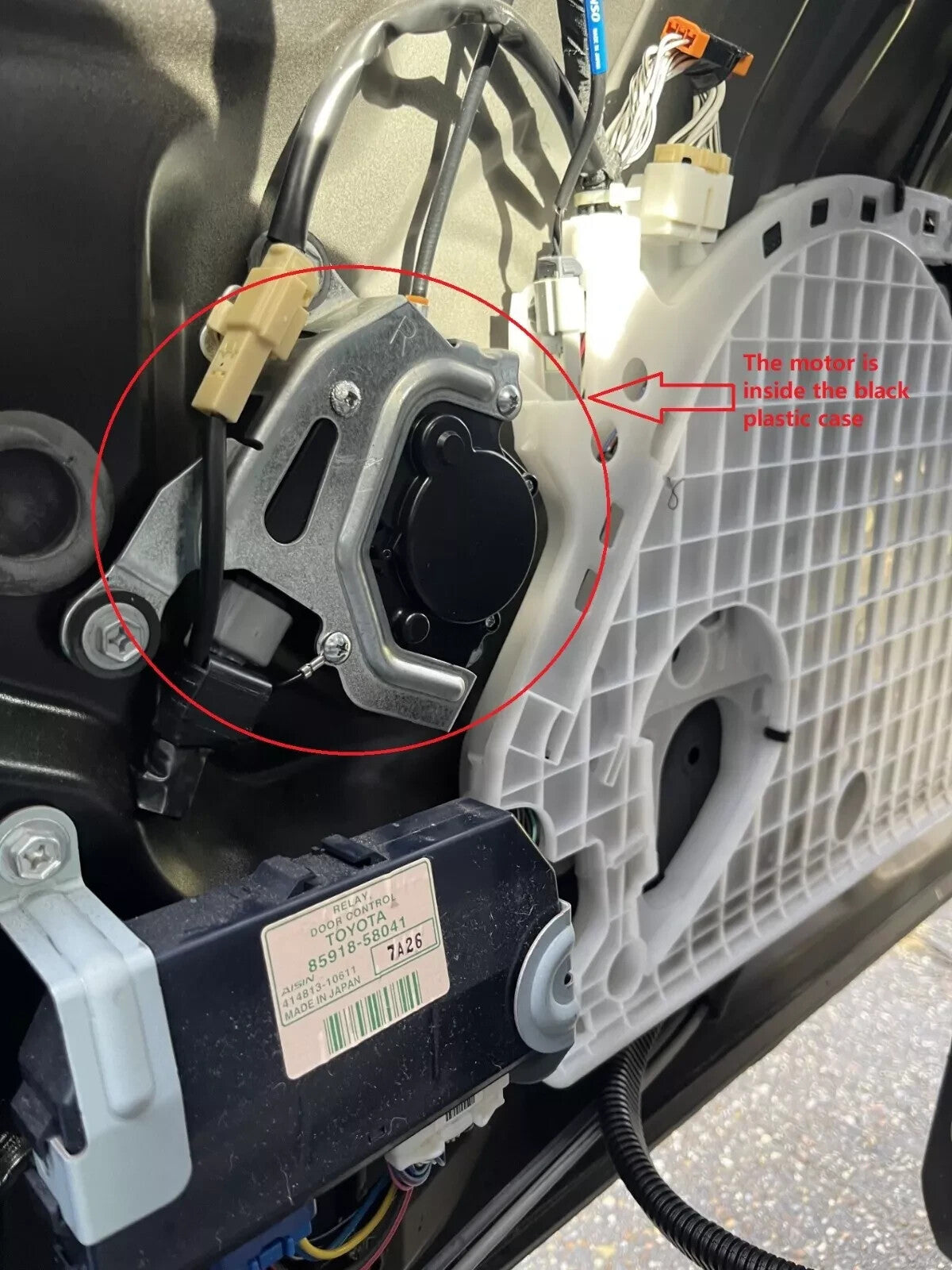

you need to take mechanism apart to replace DC motor
it is not just direct lock mechanism replacement
If you dont know how to do it --- dont buy.

The door lock release stop working is a common problem on the ANH10 and MNH10.

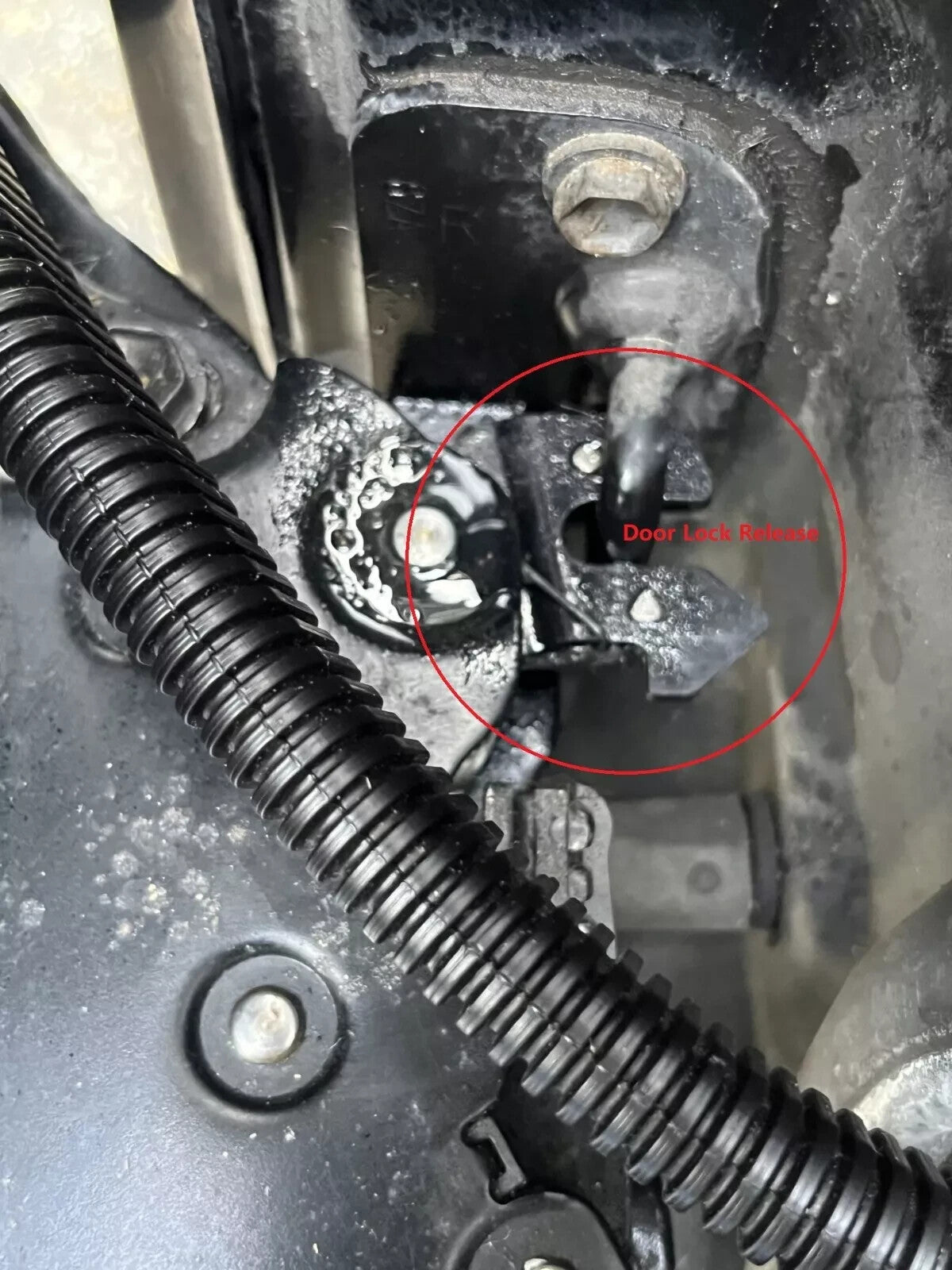

If the door lock latch(photo showing) is not moving after press the remote buttons or the switch on the dash that means the motor has stop working and it needs to be replaced.

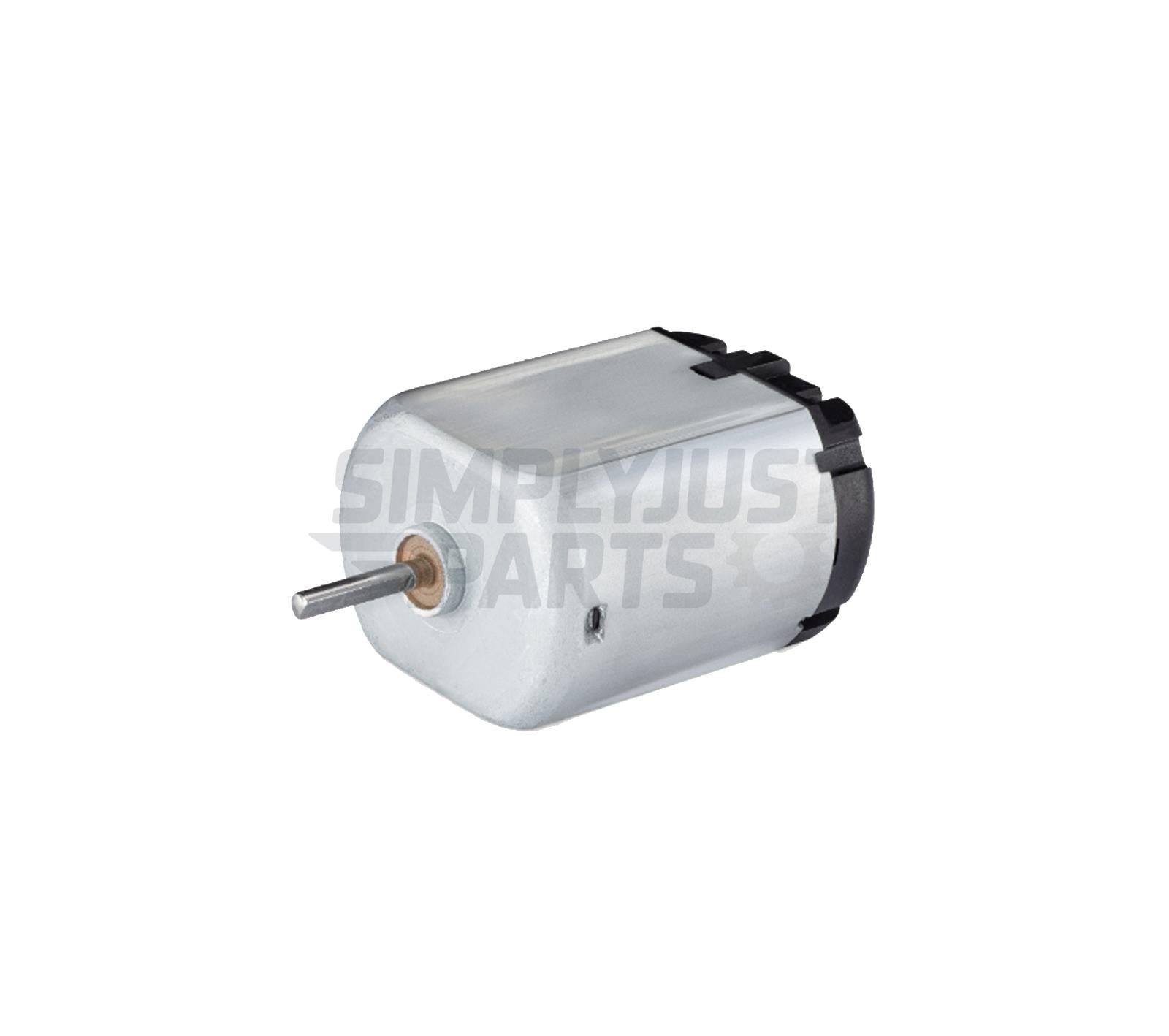

  • DC motor Made by NMB which belongs to MITSUMI group
  • Genuine best on the market

  • Nippon Miniature Bearing was established in 1951 as a premiere miniature ball bearing manufacturer.
  • Price is for 1 DC motor unit only plus free delivery
  • Door unlocking issue, if your doors do not open or close off your remote or roof button but open if you pull door handle this is the little motor you need
  • Same DC motor is used across many platforms: Nissan, Toyota.
  • Alphard,Vellfire,Estima 10,20,30 series
  • This is replacement -- you need to know what are you looking for. Car manufactures dont provide this motor as separate part -- you would need buy the whole mechanism
  • There are plenty videos on known platform
Specifications
Category
Standard Flat Brush
-
  -
Brush Material
Carbon
Frame Height (mm)
18.3
Frame Length [mm]
30.5
Frame Width (mm)
24.2
Mass (g)
37.8
No Load Current (mA)
116
No Load Speed (rpm)
14974
Operating Voltage - Lower (V)
9
Operating Voltage - Upper (V)
14.5
Rated Current (mA)
792
Rated Load [mN-m]
4.9
Rated Speed (rpm)
12850
Rated Voltage (V)
12
Shaft Diameter (mm)
2
Shaft Length (mm)
11.5
Starting Current (mA)
4878
Starting Torque [mN-m]
34.5
