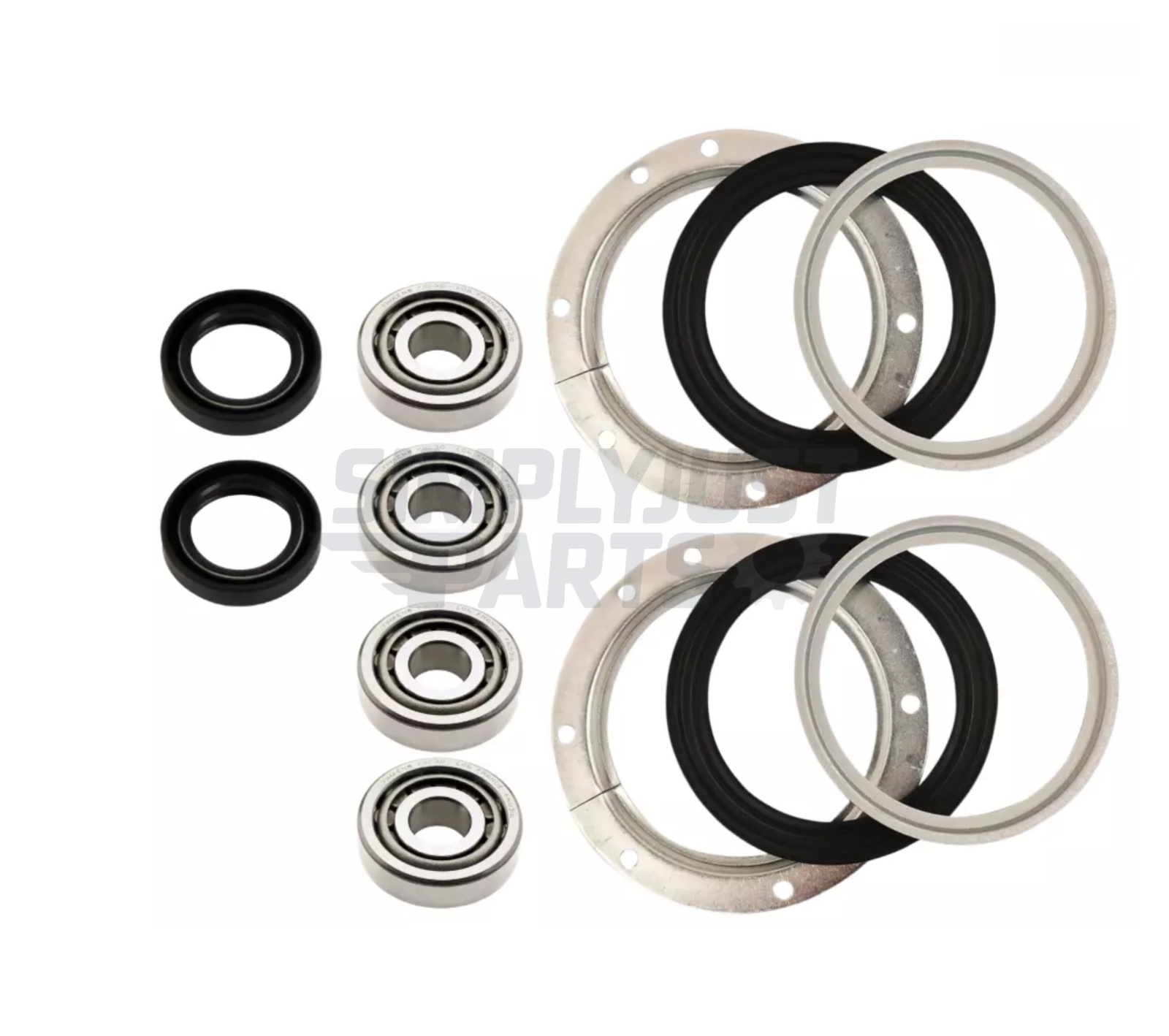

2 x Swivel Seal.OE quality.

4 x Kingpin Bearings OE quality.

2 x Driveshaft Oil Seal. OE quality.

We have made a kit that comprises of all the components you need to refurbish both side of your front axle

 TO FIT ALL JIMNY'S 98 -18

ALL PARTS ARE 100% OE QUALITY REST ASSURED

SYMPTOMS OF FAULT

Steering “shimmy” AKA “death wobble” the steering wheel shaking usually around 35-45mph (60-80mk/h), can be anything from a slight shake to a violent steering wheel shake. Oil/grease leaking from the swivel joints. Vertical play in front wheels when hovering above ground.

The first generation Suzuki Jimny have a 4 wheel drive suspension set-up using kingpins and a swivel joint system, although a fairly good set-up they are prone to leaks and the kingpins and bearings fail when excessively used off-road. Not only are these faults MOT failures, they are also dangerous if driven when the faults become excessive- known as the “death wobble”.

Associated OE part numbers:

Kingpins – 45610-63002

Bearings – 09265-15006

Swivel seal – 45120-81A04

Oil seal – 09283-26016
