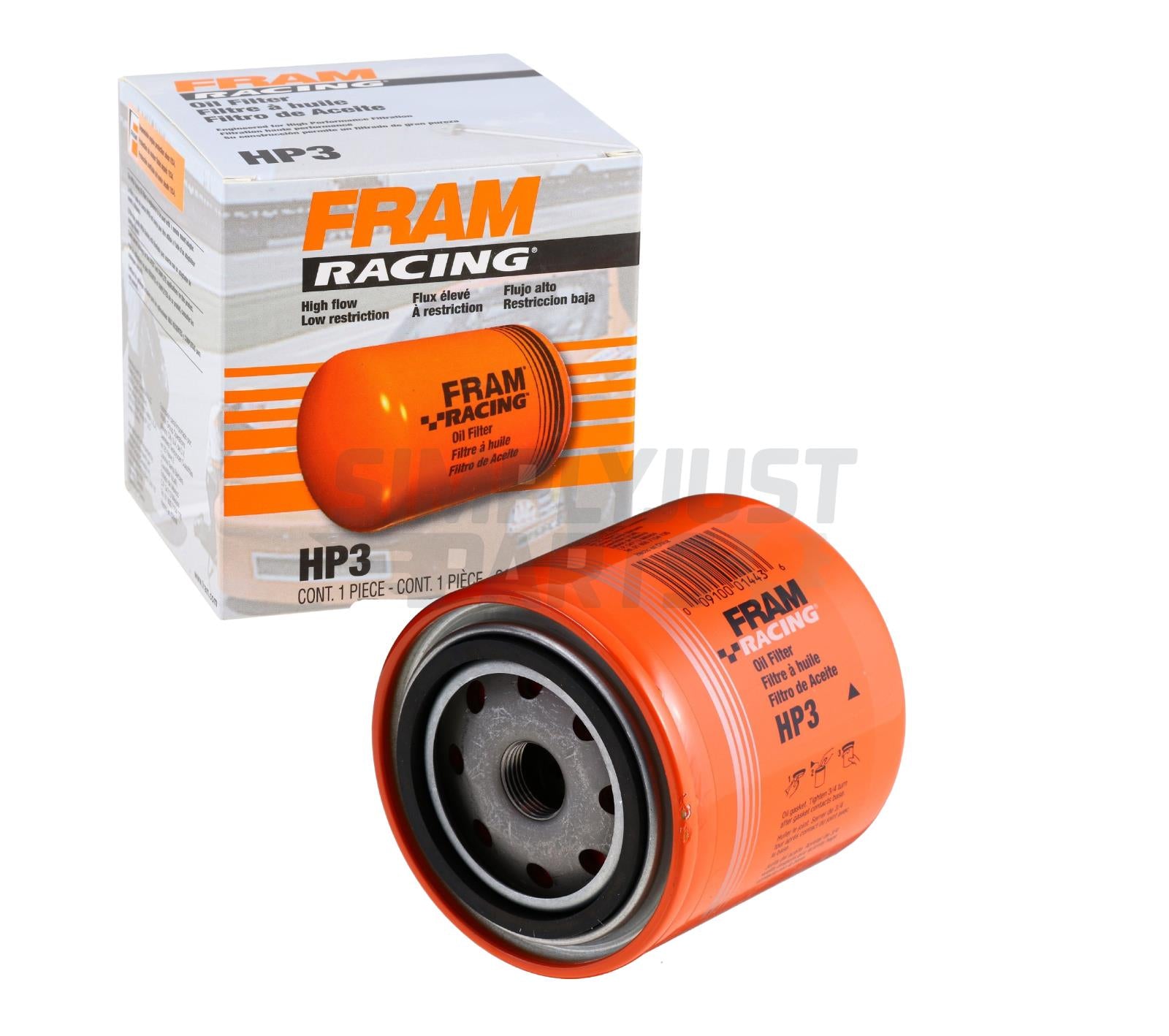

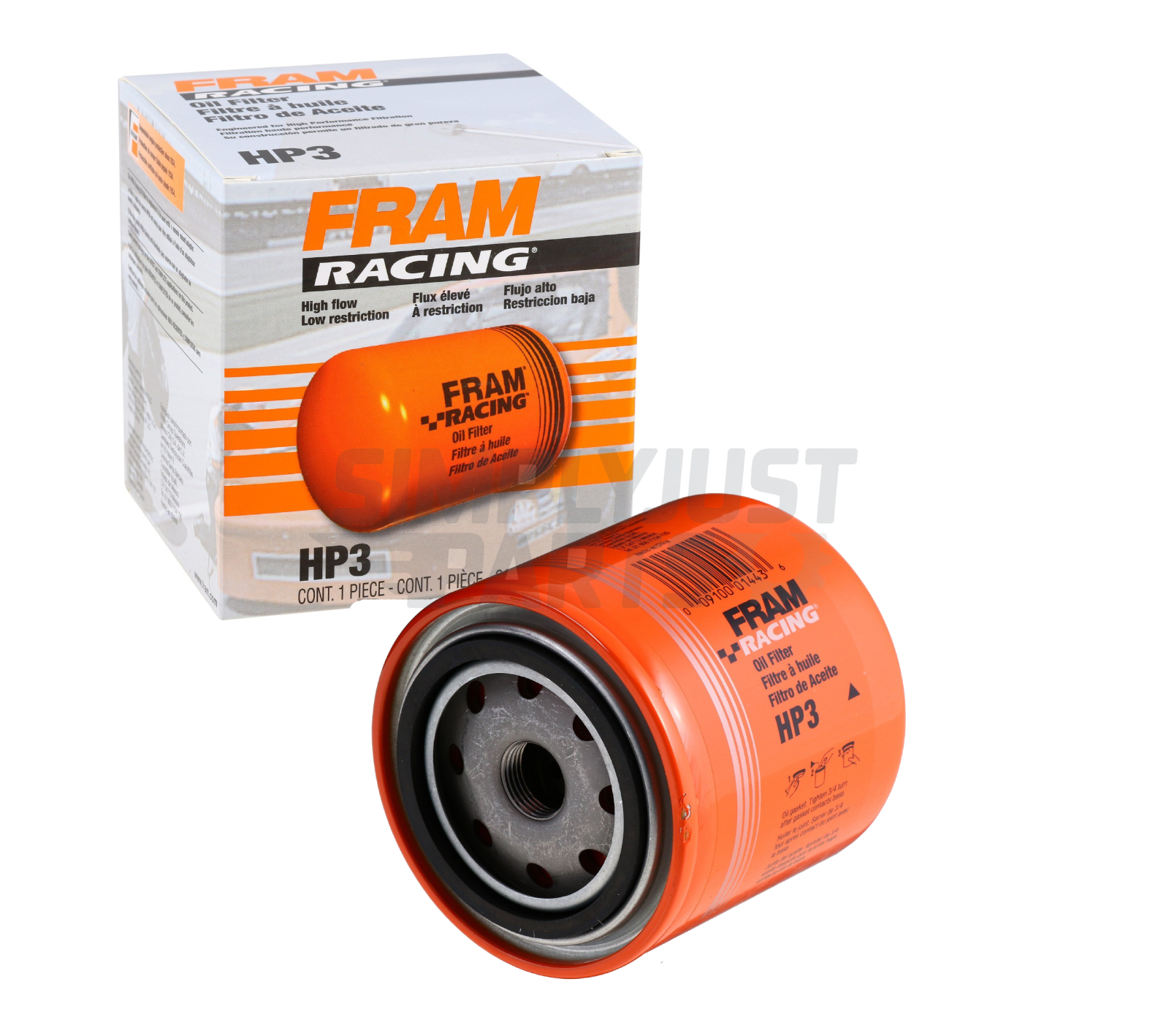

FRAM Racing® Filters are optimized for both racing and high-performance street cars, and are compatible with all oil types. Feel confident knowing a heavy-gauge tapping plate and an extra-thick steel can will withstand the high pressure flexing caused by demanding driving conditions. A spiral-shaped center tube provides protection against collapse, and tough steel end caps add even more durability. A screen-over 22psi filter bypass valve provides additional protection against larger contaminants.
Features & Benefits:
Low-restriction racing media designed for high oil flow. The media features 94% efficiency @20 microns for excellent engine protection.
Silicone anti-drain back valve.
Recommended maximum oil flow: 10-18gpm, depending on model.
Maximum burst pressure: 350-500psi, depending on model.
Maximum operating pressure: 200psi on all models.
FRAM HP3 Specifications
Anti-Drain Back Valve
Yes
Attachment Type
Spin-on
Burst Pressure
400.000
Bypass Relief Valve
Yes
Bypass Relief Valve Setting
16-28
Filter Media Material
Cellulose/Synthetic Blend
Filter Type
Spin-On Canister
Gasket Inside Diameter (IN)
2.460
Gasket Outside Diameter (IN)
2.814
Gasket Thickness (IN)
0.354
Gasket Type
Base
Grade
Advanced
Height (IN)
3.763
Housing Color
Orange
Inlet Type
Threaded
Inside Thread Diameter
3/4-16
Marine Approved
No
Non Slip Grip
No
Outside Diameter (IN)
3.677
Thread Size
Standard
Torque Nut
No
